// Product Portfolio — 2024/2026

Defence Equipment ENGINEERED FOR
SUPREMACY

From next-generation Main Battle Tanks to autonomous UAVs and green mobility solutions — browse our full portfolio or request product information from HIT.

01 / 09

Main Battle Tanks Armoured Firepower — Next-Gen Lethality

HIT's MBT portfolio represents the pinnacle of Pakistani armour — from the formidable Al-Khalid lineage to the modernised Al-Zarrar, delivering 3rd-generation firepower, advanced fire control systems, and composite armour protection.

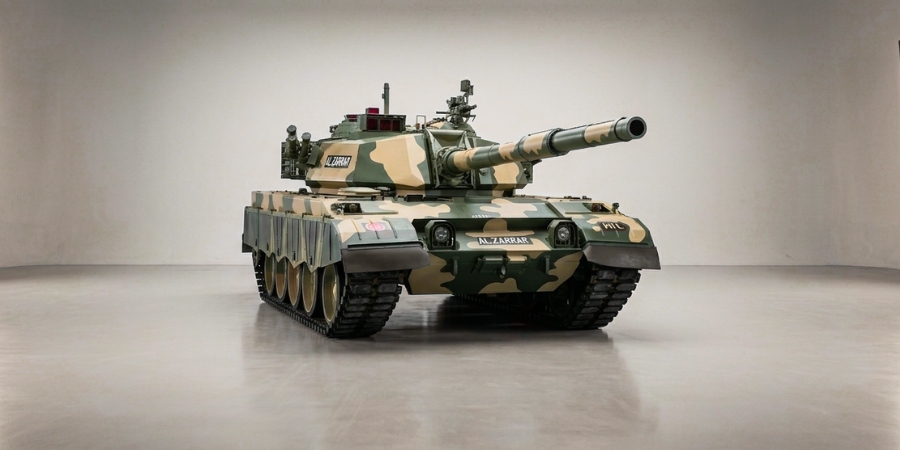

Al-Zarrar main battle tank manufactured by Heavy Industries Taxila In Service
Main Battle Tank

Tank Al-Zarrar

Upgrade of T-55, T-59 & T-69 tanks through extensive R&D and prototype trials. Series production commenced January 2003 — over 480 tanks upgraded to Al-Zarrar configuration by HIT. Features 125mm smooth bore gun, bi-axis stabilized FCS, 2nd-gen thermal imager, and 12.7mm RCWS with auto-tracking.

Combat Weight42.7 tons
Main Gun125mm Smooth Bore
Engine730 hp Diesel
Top Speed55 km/h

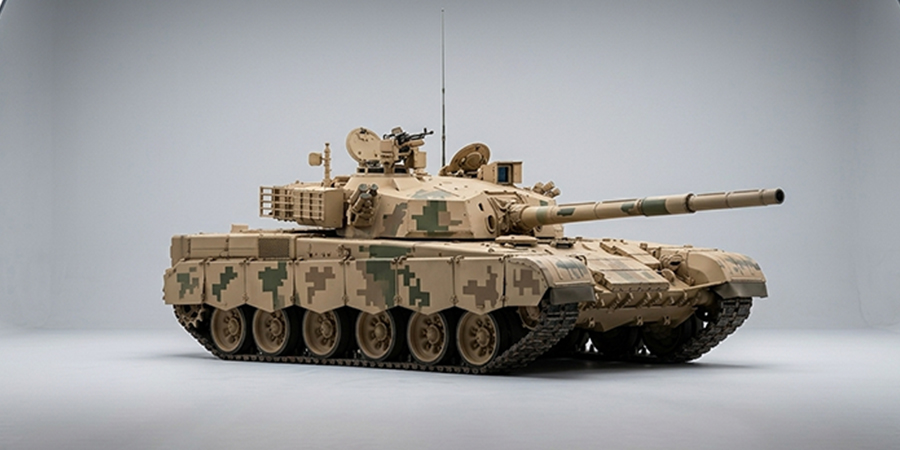

Al-Khalid main battle tank manufactured by Heavy Industries Taxila
Main Battle Tank

Tank Al-Khalid 1

Pakistan's 3rd-generation MBT with 6TD-II 1200 hp power pack, 125mm chrome-plated smooth bore gun, circular carousel autoloader, panoramic commander sight with hunter-killer capability, HMSS gunner sight, auto tracker, and ERA armour protection.

Combat Weight46–48 ton
Main Gun125mm Smooth Bore
Engine1200 hp (6TD-II)
Top Speed70 km/h
02 / 09

APCs Armoured Personnel Carriers — Troop Mobility

HIT's APC family offers battle-proven all-terrain troop transport platforms in multiple configurations — from the classic M113-based Talha to the modern Faaris with enhanced crew survivability and mission flexibility.

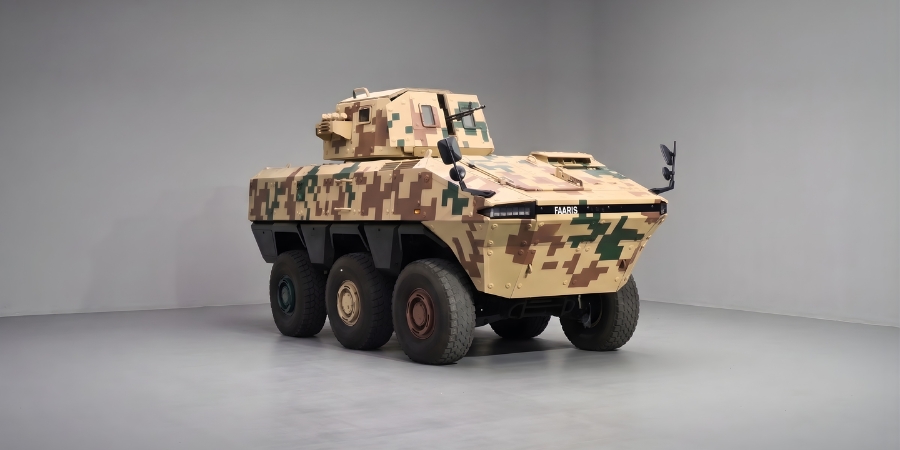

Wheeled APC Faaris manufactured by Heavy Industries Taxila In Service
Armoured Personnel Carrier

Wheeled APC Faaris

A wheeled APC with monocoque hull, 570 hp engine, and hydro-pneumatic independent suspension. Carries 11 crew with STANAG Level 4 blast protection, mine-protected seats, 7.62mm / 12.7mm armament options, and Beidou+GPS navigation.

Combat Weight25 ton
Engine570 hp
Crew Capacity11
Top Speed110 km/h

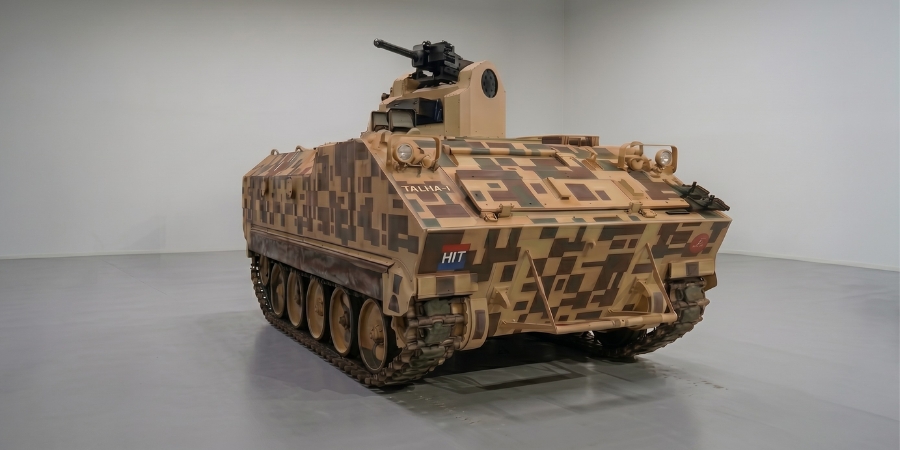

APC Talha-1 armoured personnel carrier manufactured by HIT Taxila In Service
Armoured Personnel Carrier

APC Talha - 1

Indigenous tracked APC with aluminium alloy monocoque hull, torsion bar suspension, and B6 ballistic protection with optional add-on armour against 12.7mm. Carries 13 crew, powered by a 275–350 hp V8 diesel with automatic 4-speed transmission and pivot steering for infinite turning radius.

Combat Weight12–14 ton
Crew Capacity13
Engine275–350 hp
Top Speed70 km/h
03 / 09

ASVs Armoured Security Vehicles — Force Protection

HIT's ASV line-up provides B6/B7 ballistic protection for law enforcement, border security, and VIP applications. From the iconic Mohafiz family to the Dragoon joint-venture platform.

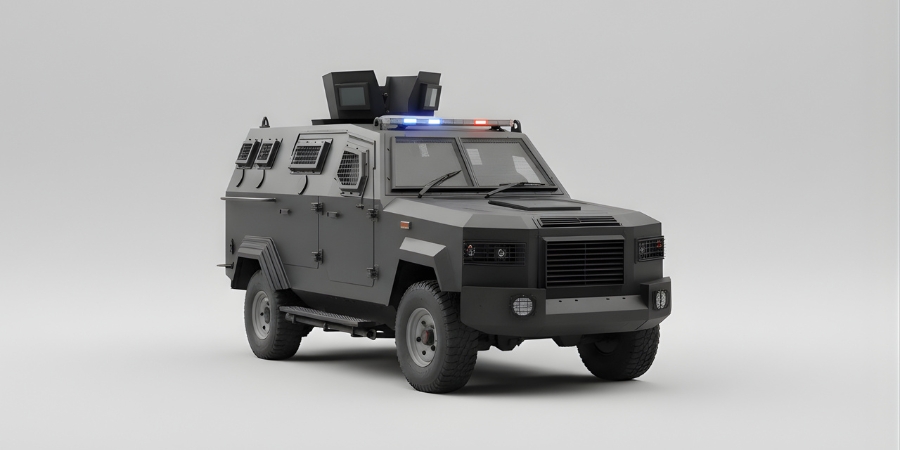

ASV Mohafiz-V armoured security vehicle by Heavy Industries Taxila In Service
Armoured Security Vehicle

ASV Mohafiz - V

A 4×4 armoured security vehicle with B6 ballistic steel protection per EN 1522/1523. Powered by a 202 hp V8 turbo diesel with Toyota 5-speed manual transmission, upgraded suspension and disc brakes, run-flat tyres, and optional turret. Carries 8 crew at up to 120 km/h on metalled roads.

Combat Weight5.6 ton
Crew Cap8
Engine202 hp
Top Speed120 km/h

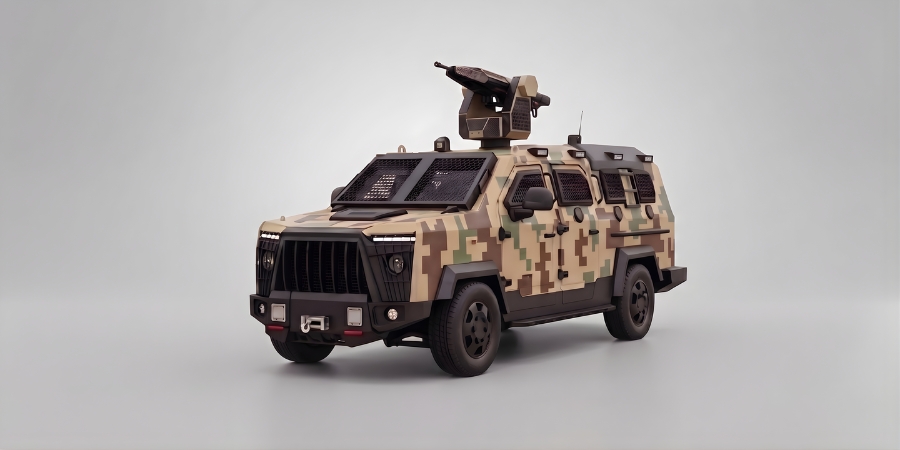

Liger In Service
Armoured Security Vehicle

LIGER

Built for the modern battlefield, this armoured personnel carrier delivers unmatched speed, agility, and protection across every terrain. With room for a full combat crew, formidable firepower, and cutting-edge safety systems, it redefines what a mission-ready vehicle looks like.

ProtectionB6 Ballistic
Armament12.7 mm
Drive4 × 4
Engine320 HP
04 / 09

RCWS Remote Controlled Weapon Stations

HIT's RCWS solutions allow operators to engage targets from inside protected vehicles, eliminating crew exposure. Mountable on any APC, truck, or fixed installation — with day/night optics and multiple weapon calibres.

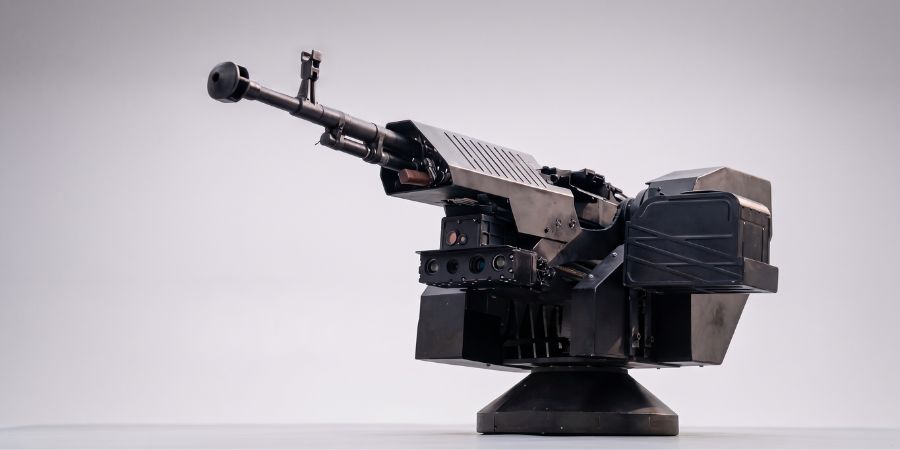

RCWS — 12.7mm HMG In Production
Remote Weapon Station

RCWS — 12.7mm HMG

HIT's RCWS family delivers precision firepower with full operator protection for vehicle or bunker deployment. This 12.7mm HMG configuration on the ZARB M variant offers 360° traverse, touch-screen auto-laying fire control, and optional thermal imaging for border, perimeter, and asset protection missions.

Calibre12.7mm / 7.62mm
Traverse360°
Elevation−20° to +60°
WeightZARB M — 200 kg

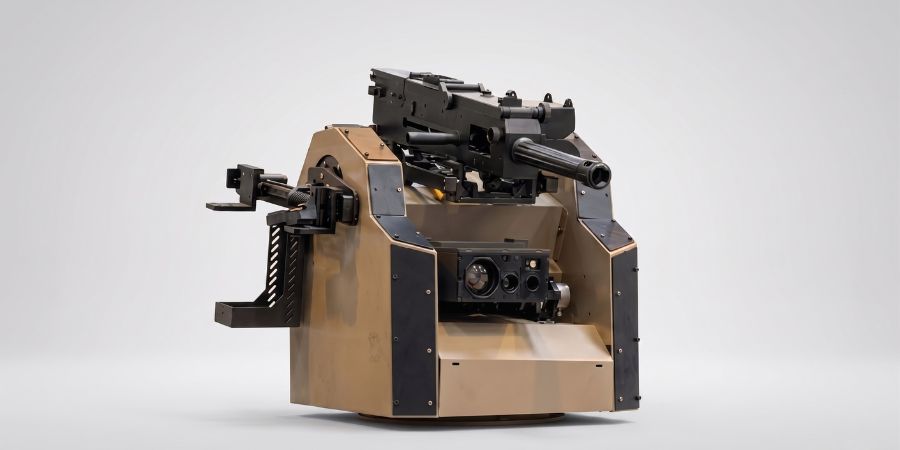

RCWS — AGL Advanced
Remote Weapon Station

RCWS — AGL

HIT's RCWS family delivers precision firepower with full operator protection for vehicle or bunker deployment. This AGL configuration on the ZARB H heavy variant provides shoot-and-suppress capability with 360° traverse, electro-optical sighting, and touch-screen auto-laying for high-threat ground roles.

CalibreAGL
Traverse360°
Elevation−20° to +60°
WeightZARB H — 400 kg
05 / 09

AIMS Advanced Integrated Mortar System

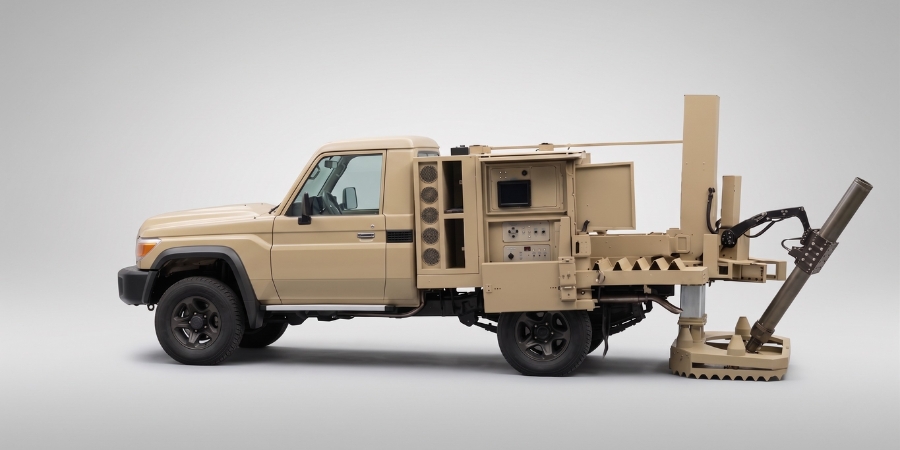

Advanced Integrated Mortar System (AIMS) R&D / Production
Advanced Integrated Mortar System

AIMS

A vehicle-mounted mortar system for 4×4 platforms with shoot-and-scoot capability. Supports 81mm and 120mm calibers with digital fire control, stabilization, integrated ammunition carrier, and rapid automated target alignment.

Calibre81mm / 120mm
RangeUp to 6.5 km
System Weight< 1300 kg
Deploy Time< 50 sec
06 / 09

PPE Personal Protective Equipment

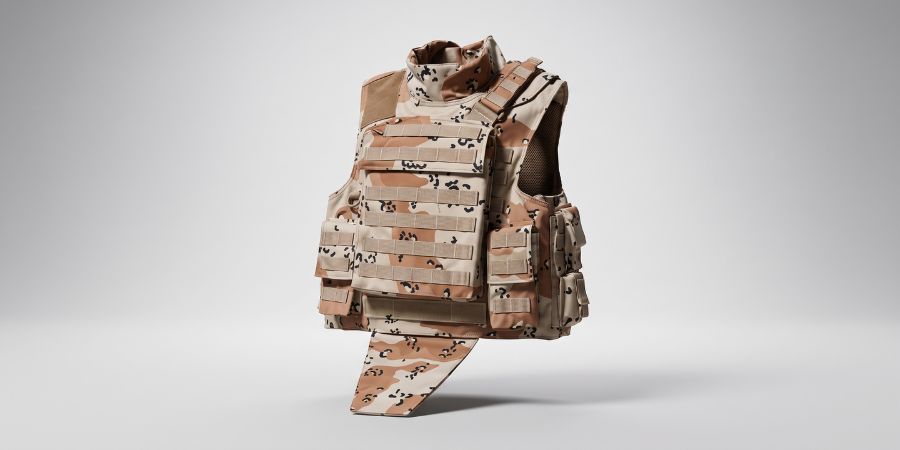

Bullet-Proof Jacket PK Level III Available
PPE — Body Armour

Bullet-Proof Jacket PK Level III

PK Std Level III ballistic vest with Level IIIA soft armour and hard plates. Protects front, back, neck, shoulders, and groin with adjustable waist/shoulder fit, front/rear plates, and 2 ammunition pockets. Available in Small, Medium, and Large.

ProtectionPK Std III / IIIA
Max Weight7.4–11.25 kg
SizesS / M / L
CoverageFront to Groin

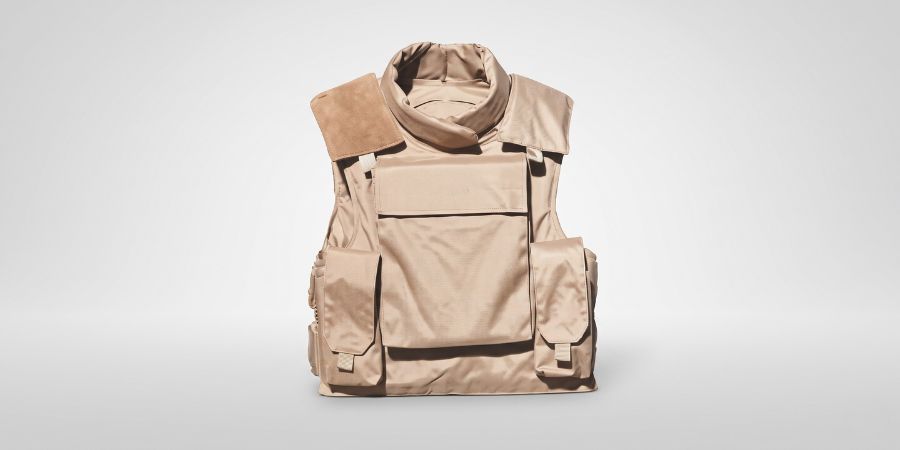

Bullet-Proof Jacket PK Level IIIA Available
PPE — Body Armour

Bullet-Proof Jacket PK Level IIIA

Lightweight PK Std Level IIIA soft armour vest protecting front and back. HPPE/Aramid multi-layer panels in a 1000-D high tenacity carrier with waist adjustment, optional shoulder adjustment, and side Velcro opening — max 3.2 kg.

ProtectionPK Std IIIA
Max Weight3.2 kg
SizesS / M / L / XL
CoverageFront & Back

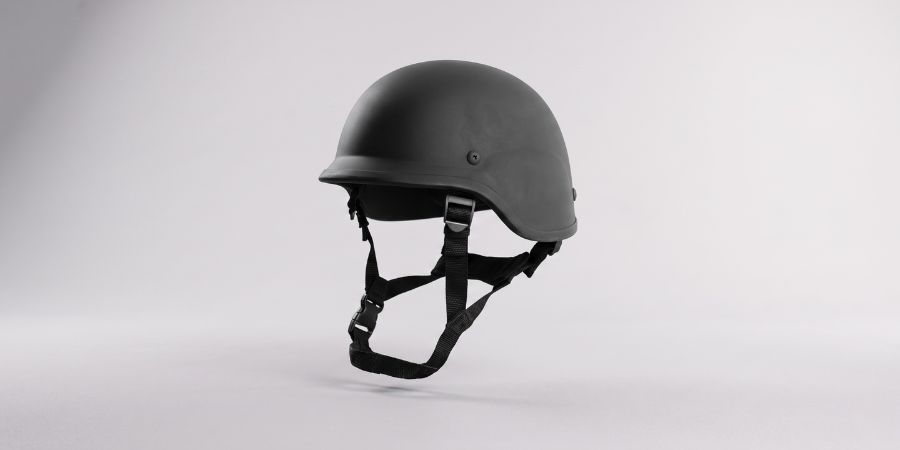

PASGT Helmet Available
PPE — Ballistic Headgear

PASGT Helmet

NIJ 0106.01-rated PASGT ballistic helmet with Aramid/Kevlar composite construction. Provides fragmentation V50 protection and 9×19 mm ballistic resistance, available in three sizes with adjustable chin straps — max weight 1.450 kg.

StandardNIJ 0106.01
Max Weight1.450 kg
SizesS / M / L
ColoursBlack / Navy / OD
07 / 09

UAVs Unmanned Aerial Vehicles — ISR & Strike

HIT's UAV portfolio extends Pakistan's defence capabilities into the unmanned domain — offering ISR, electronic warfare, and precision strike solutions for modern battlefields and border surveillance.

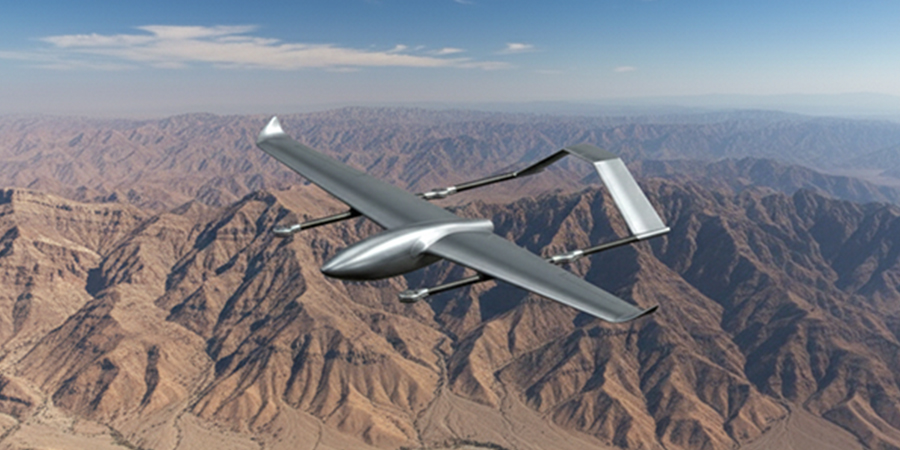

UAV drones HIT taxila heavy industries taxila top armoured vehicles top defense manufacturers Pakistan defense Development
Unmanned Aerial Vehicle

Medium Altitude ISR UAV

A fixed-wing medium-altitude UAV designed for persistent Intelligence, Surveillance, and Reconnaissance missions. Equipped with EO/IR sensors, SAR capability, and encrypted data-link for real-time battlefield intelligence. Suitable for border patrol and counter-insurgency operations.

RoleISR / EW
Endurance12+ Hours
PayloadEO/IR / SAR
Data-LinkEncrypted
Advanced Dev
Unmanned Aerial System

Loitering Munition / Kamikaze UAV

A man-in-the-loop loitering munition capable of sustained flight over a target area before precision terminal dive. Provides affordable precision strike against high-value targets, armour, and radar systems with minimal collateral damage.

RolePrecision Strike
Loiter Time60+ Minutes
GuidanceEO/IR + Man-in-Loop
LaunchTube / Catapult
08 / 09

E-Bus Electric Public Transport — Smart Mobility

Leveraging HIT's manufacturing expertise into the civil sector, the Electric Bus Series delivers clean, reliable, and energy-efficient mobility in 9m and 12m configurations — powered by PMSM motors and LiFePO4 battery technology for zero-emission urban and mass transit.

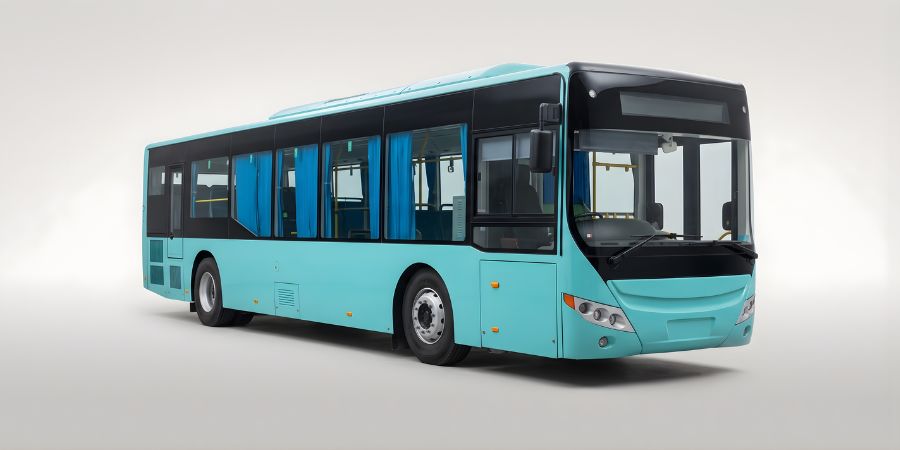

9m Electric Bus Zero Emission
Electric Bus — Civil

Electric Bus 9M

Pure electric 9m bus for urban and city transit. LiFePO4 255 kWh battery, PMSM 240 kW motor, up to 225 km range, low-floor wheelchair-friendly access, and advanced battery and fire safety systems.

Length9 Metres
Battery255 kWh LiFePO4
RangeUp to 225 km
Motor240 kW PMSM
12m Electric Bus Zero Emission
Electric Bus — Civil

Electric Bus 12M

Pure electric 12m bus for high-capacity mass transit and BRT corridors. LiFePO4 350 kWh battery, PMSM 350 kW motor, up to 275 km range, low-floor wheelchair access, and advanced safety and battery protection systems.

Length12 Metres
Battery350 kWh LiFePO4
RangeUp to 275 km
Motor350 kW PMSM
09 / 09

Margalla Green Sustainable Agricultural & Industrial Solutions

The Margalla Green initiative channels HIT's engineering capabilities into sustainable agriculture, renewable energy, and environmental solutions — empowering Pakistan's food security and clean energy transition.

Civil / Agri
Margalla Green — Agriculture

Agricultural Mechanization Tractor

A heavy-duty agricultural tractor built on HIT's mechanical engineering heritage. Designed for Pakistan's varied terrain — from Punjab plains to Sindh deltas — with a high-torque diesel engine, 3-point hitch, and PTO drive for full implement compatibility.

EngineHigh-Torque Diesel
ApplicationHeavy Agriculture
Drive4WD / 2WD Option
Hitch3-Point + PTO
Green Energy
Margalla Green — Energy

Solar Energy & Renewable Systems

HIT's green energy portfolio covers solar panel installations, off-grid power systems, and renewable energy solutions for both defence facilities and civil sectors. Part of Pakistan's commitment to sustainable national development and energy independence.

TypeSolar / Hybrid
ApplicationDefence + Civil
ScalekW to MW Range
StorageBattery Integration
